Waveshare Jetson Orin Nano/NX AI Development Board, with Two 4-lane CSI Ports, Two M.2 Key M and One M.2 Key E Ports, 5 USB Ports, 4K High-definition DisplayPort Port, compatible with Orin Module

Marchio: Waveshare
Nome modello: JETSON-ORIN-IO-BASE
Modello CPU: Tegra
Tecnologia di connettività: USB

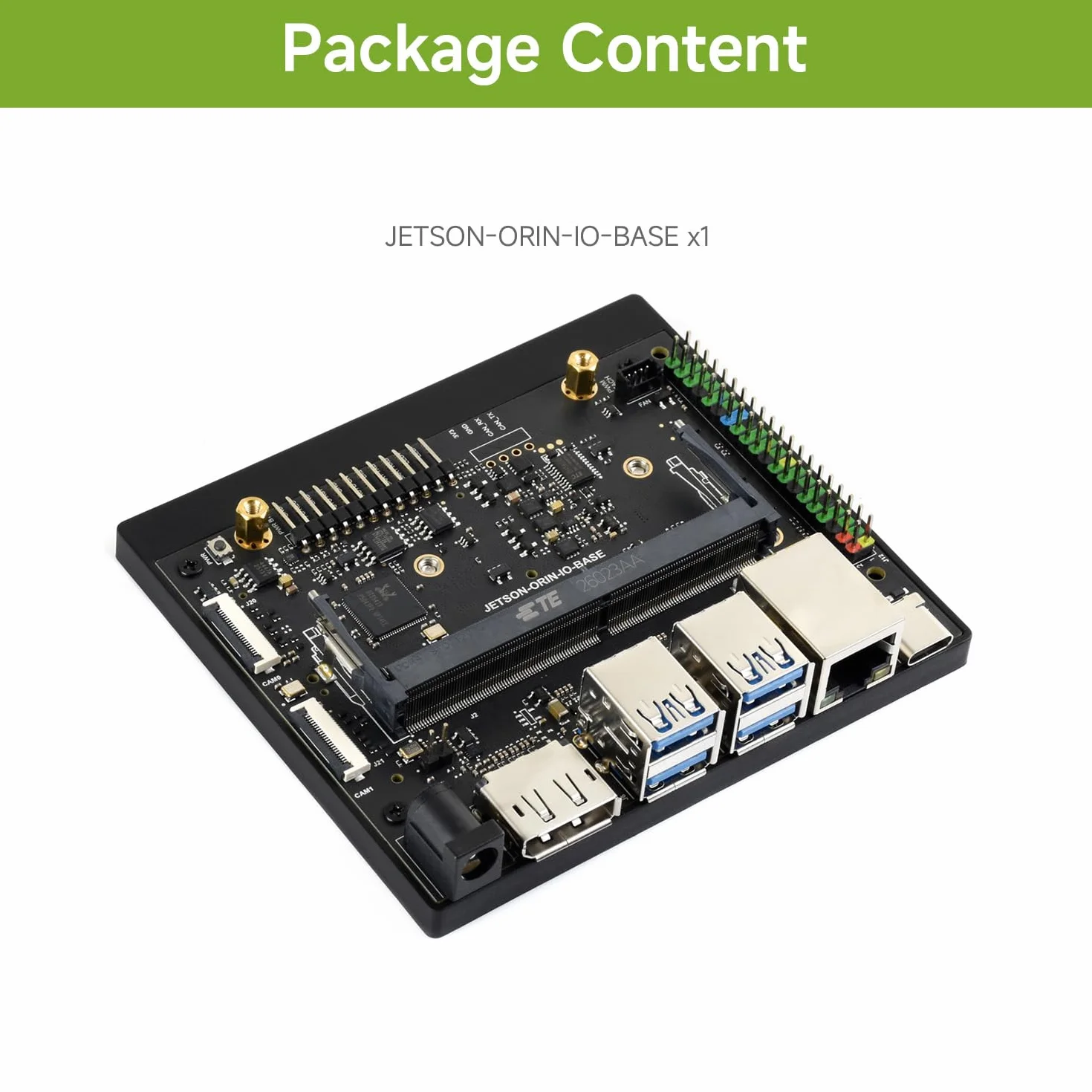

Componenti inclusi: GPIO header e adattatore di alimentazione CC con presa compatibile 5,5 x 2,4 mm

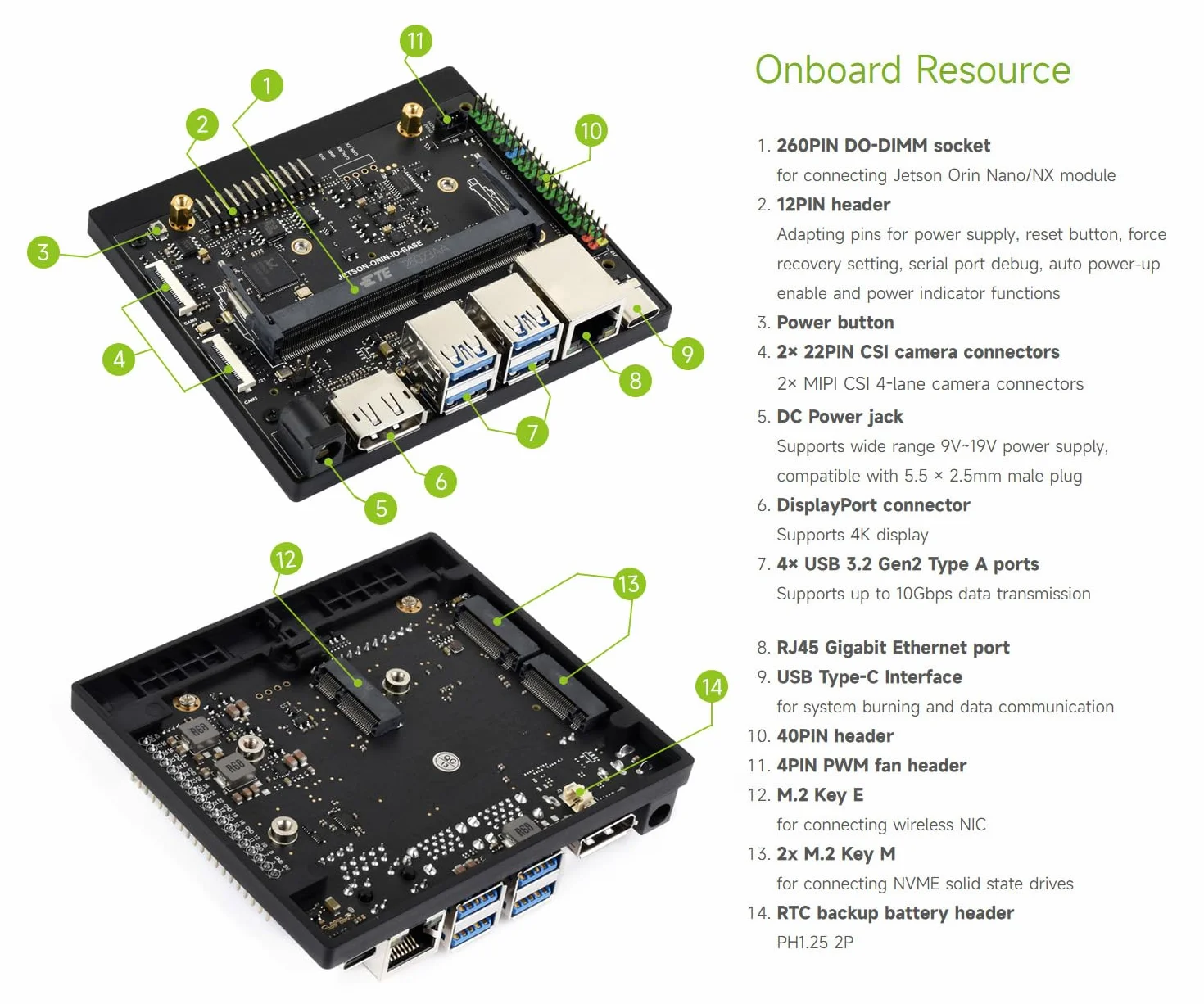

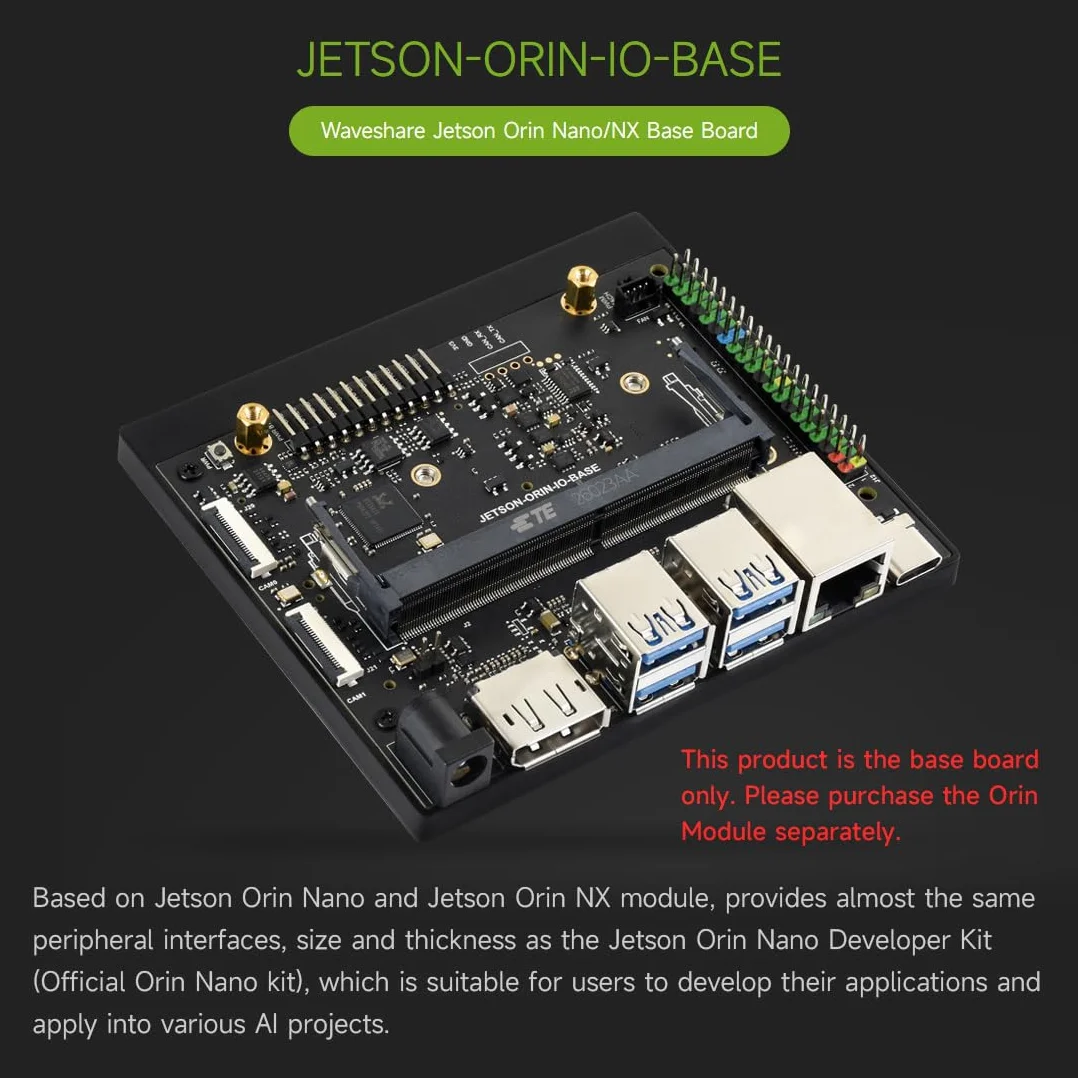

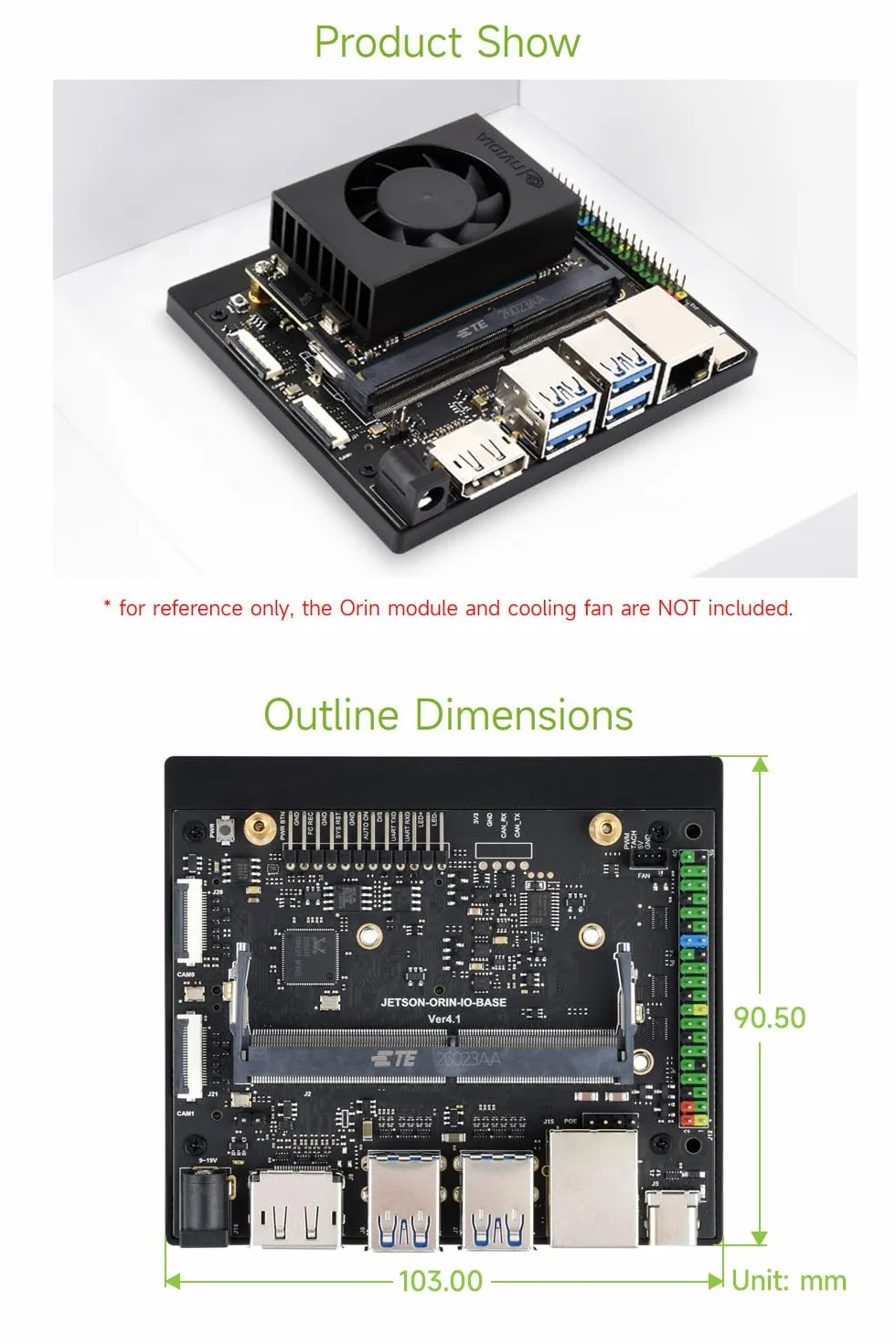

- Based on Jetson Orin Nano and Jetson Orin NX module, provides almost the same peripheral interfaces, size and thickness as the Jetson Orin Nano Developer Kit (Official Orin Nano kit), which is suitable for users to develop their applications and apply into various AI projects

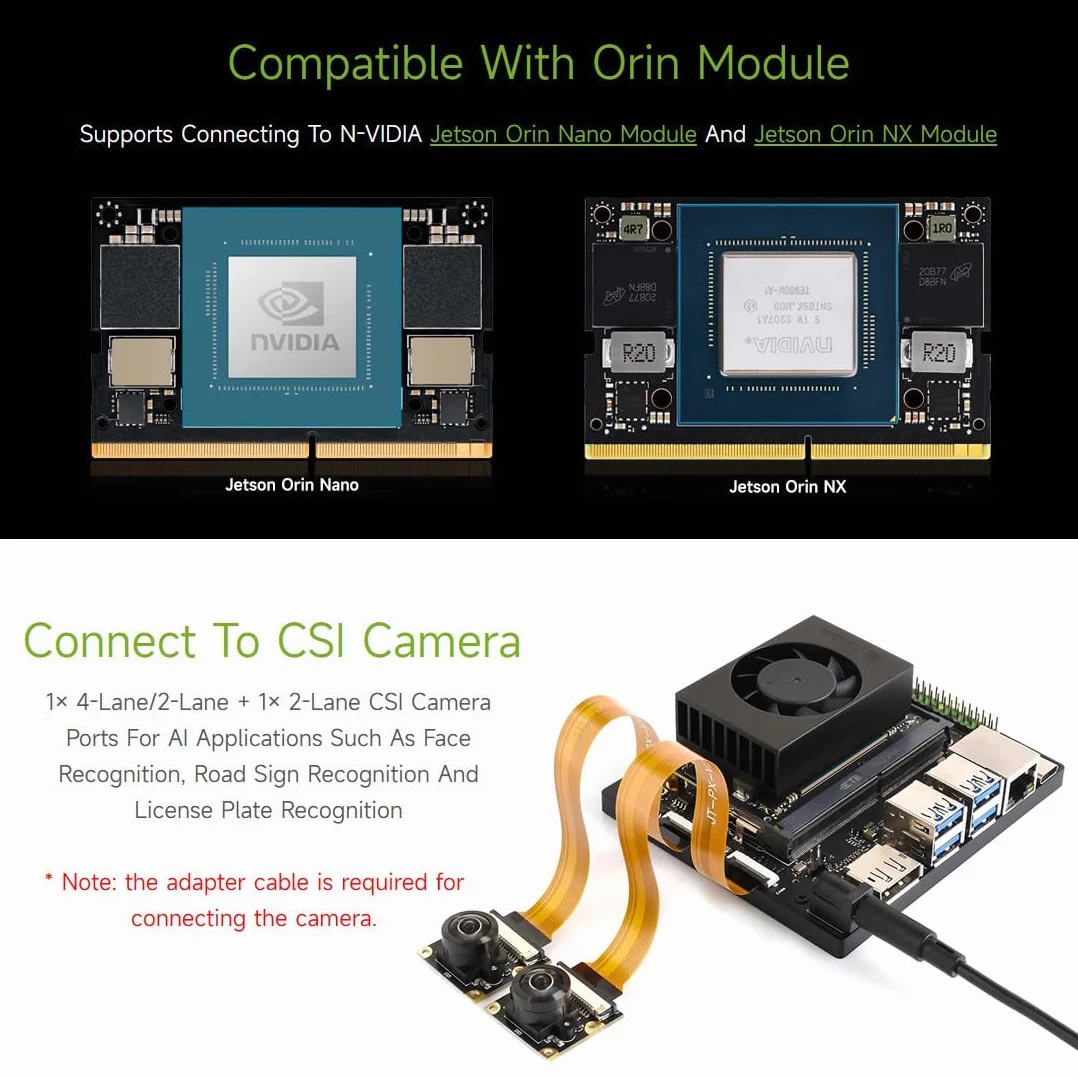

- Expanding two 4-lane CSI interfaces for accessing cameras, suitable for AI intelligent application scenarios such as facial recognition, road marking recognition, and license plate recognition(Note: Additional adapter cable is required to connect to camera)

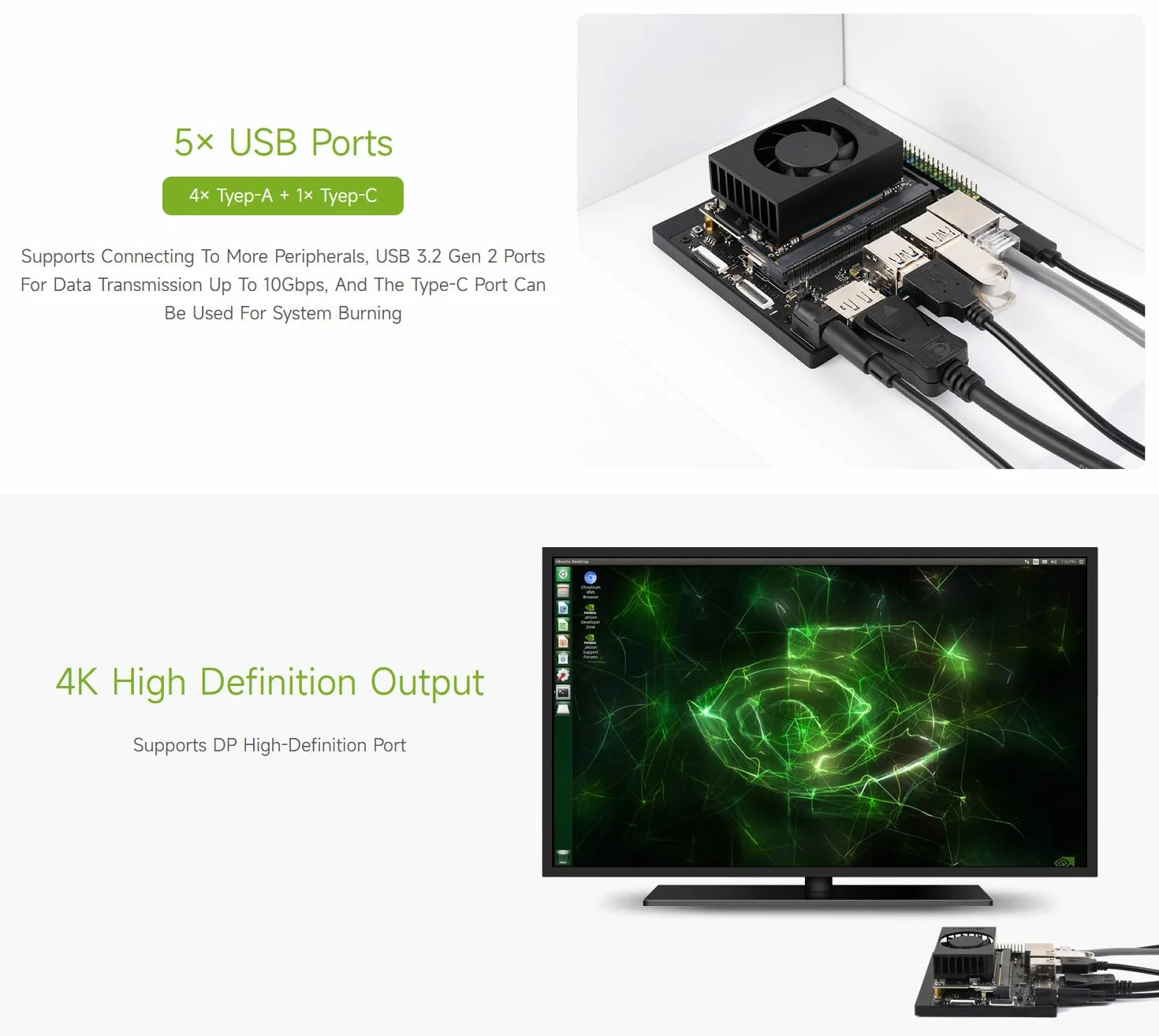

- With 4-way Tyep-A and 1-way Type-C, it can access more diverse peripherals. The USB 3.2 Gen 2 Type-A interface can support up to 10Gbps data transmission, and the Tyep-C interface can be used for system burning

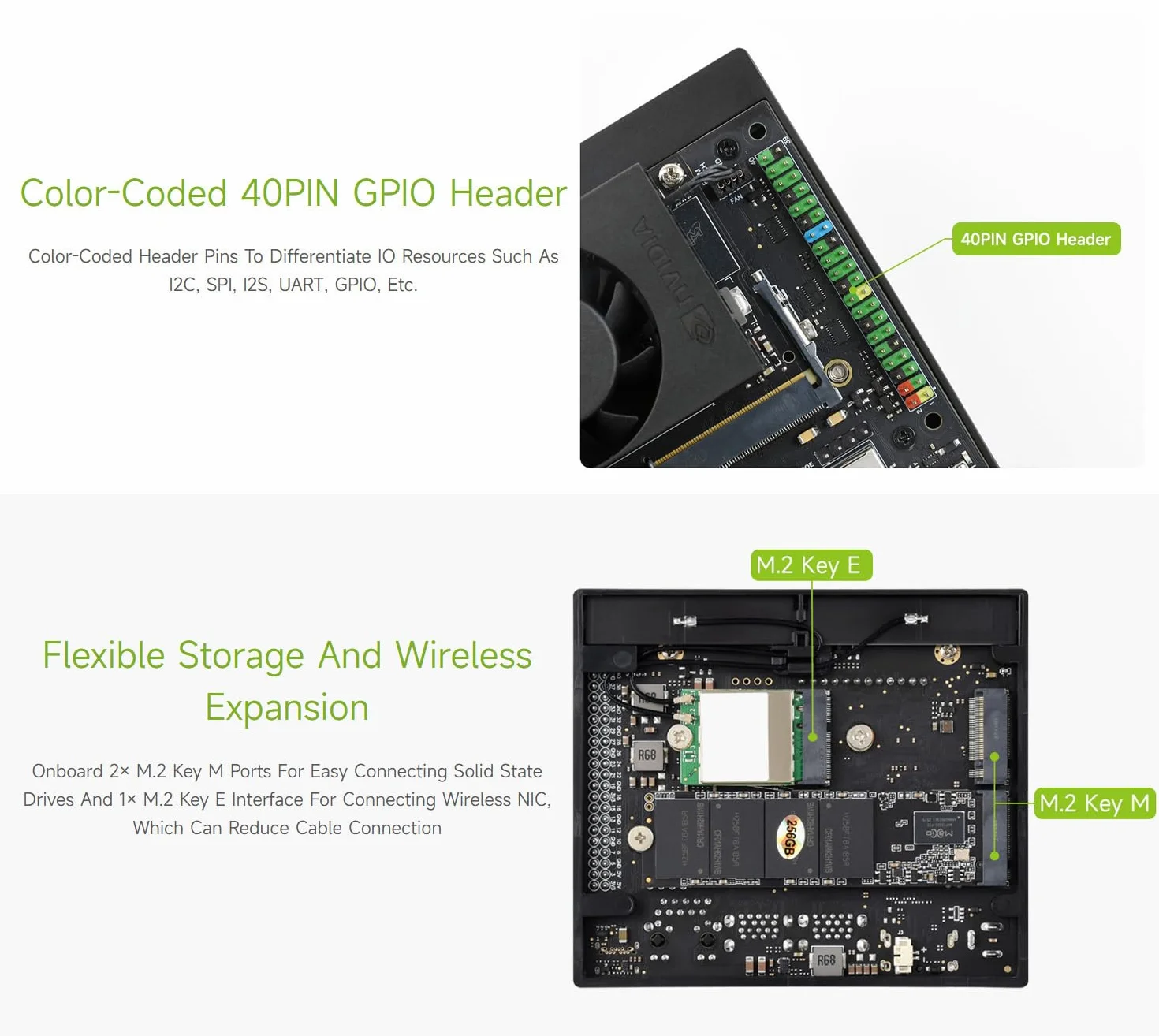

- With DP display interface for 4K display. The 40PIN GPIO interface adopts color differentiation and expands resources such as I2C, SPI, I2S, UART, GPIO, etc. Equipped with a DC power interface, supporting wide voltage and connecting 9V~19V voltage, the interface size is compatible with 5.5 x 2.4 Plug
- Expanding two M.2 Key M interfaces for accessing solid-state drives and one M.2 KeyE interface for accessing wireless network cards reduces device wiring limitations and enables flexible storage and wireless expansion
