Waveshare Industrial Serial Server RS485 RJ45 Ethernet TCP/IP Modbus Gateway 2pcs

Marchio: Waveshare
Dispositivi compatibili: Computer Industriale, Server
Tecnologia memoria RAM: DDR3
Velocità di clock della memoria: 533 MHz
Piattaforma: Web Browser
Nome modello: Waveshare-ModelName
Modello CPU: Core i5
Capacità della memoria: 1 TB
Tipo di connettore di alimentazione principale: 24 pin
Interfaccia scheda video: Integrato

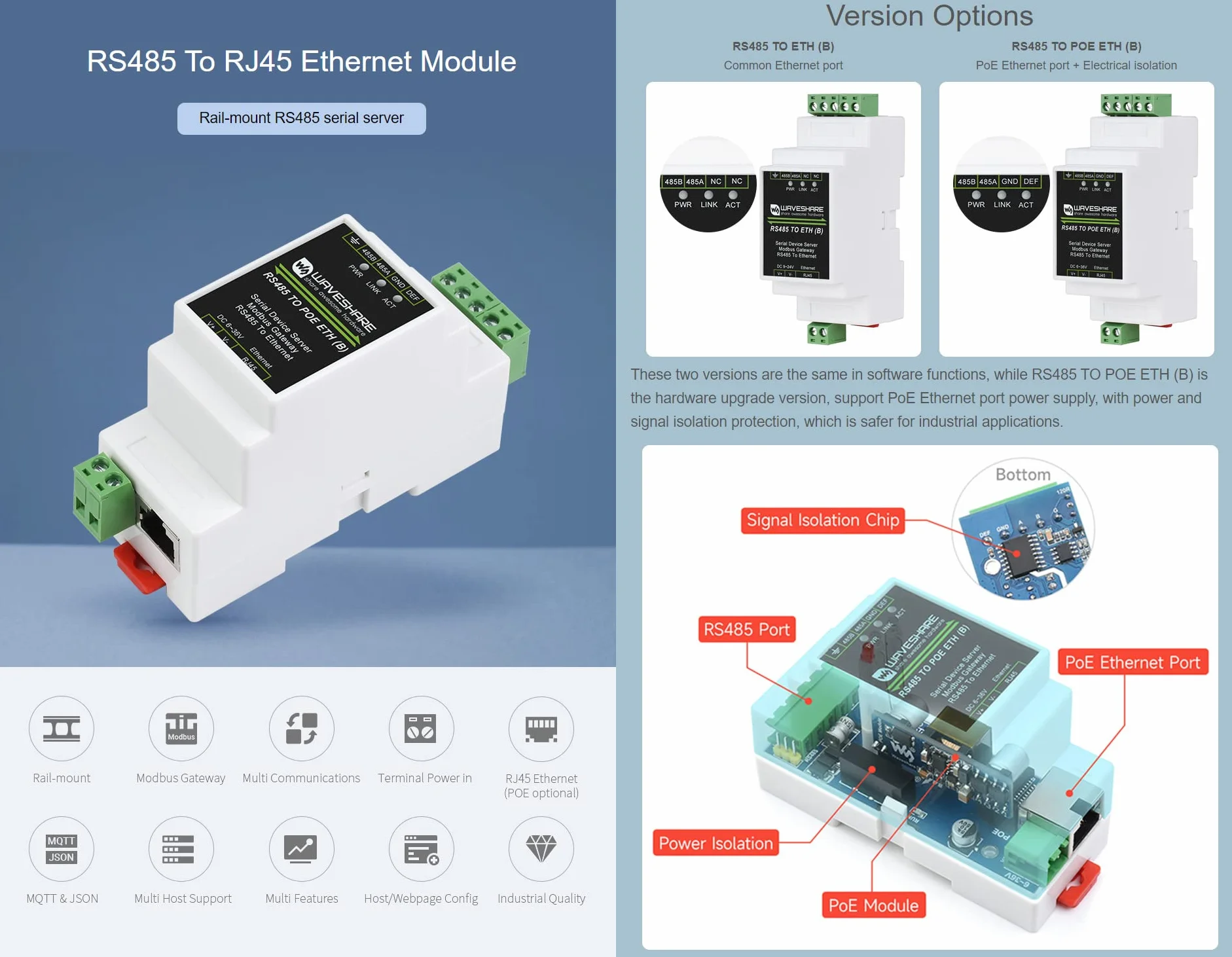

- This is a RS485 device data acquisitor / IoT gateway designed for industrial environment

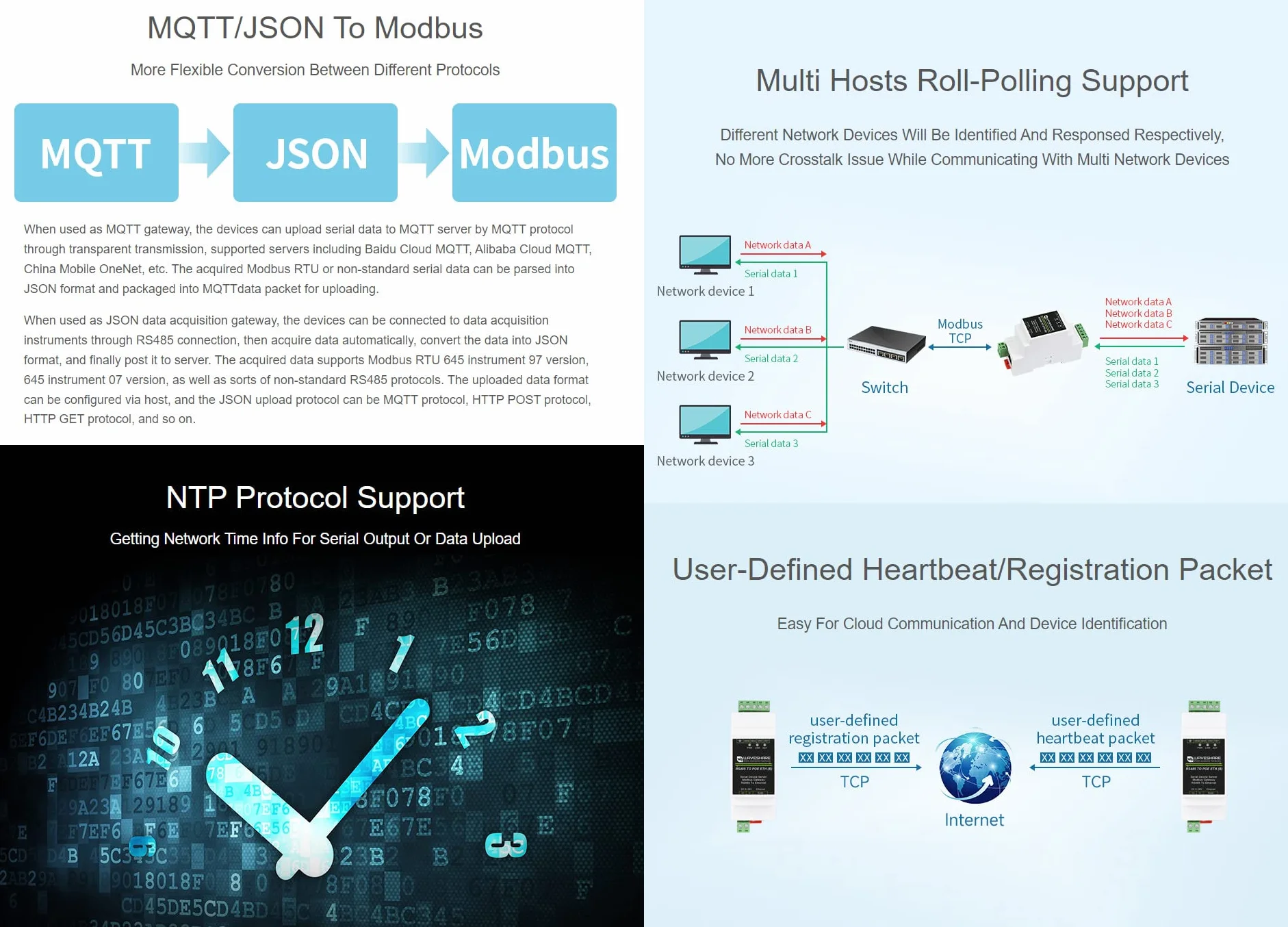

- It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc
- The module features RS485 and Ethernet ports, uses screw terminals for power input, supports 9~24V wide range power supply(Note: Power supply is not included, it is recommended to use a 12V Industrial DIN-Rail Power Supply)
- Rail-mount flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring

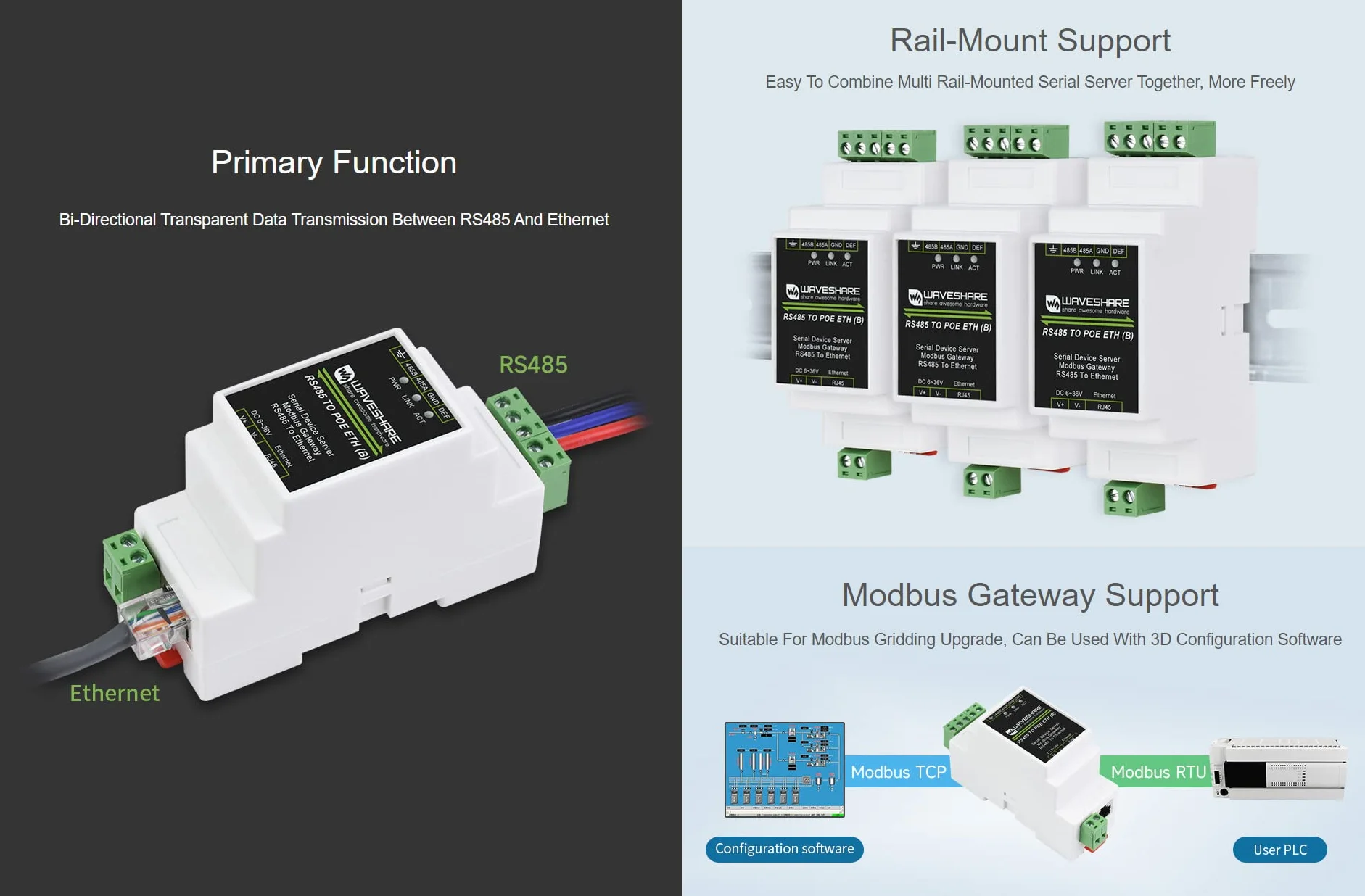

- Bi-Directional Transparent Data Transmission Between RS485 And Ethernet
