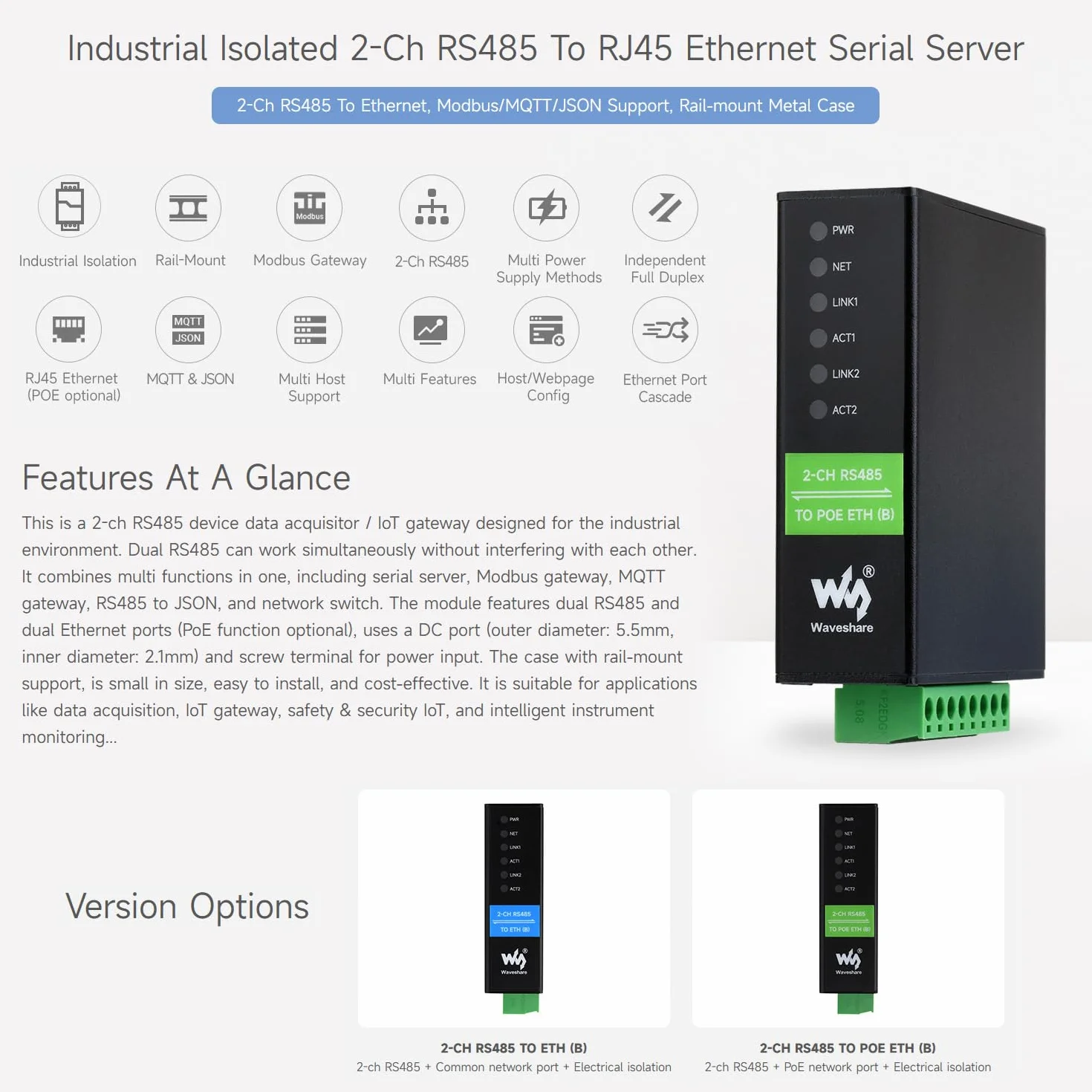

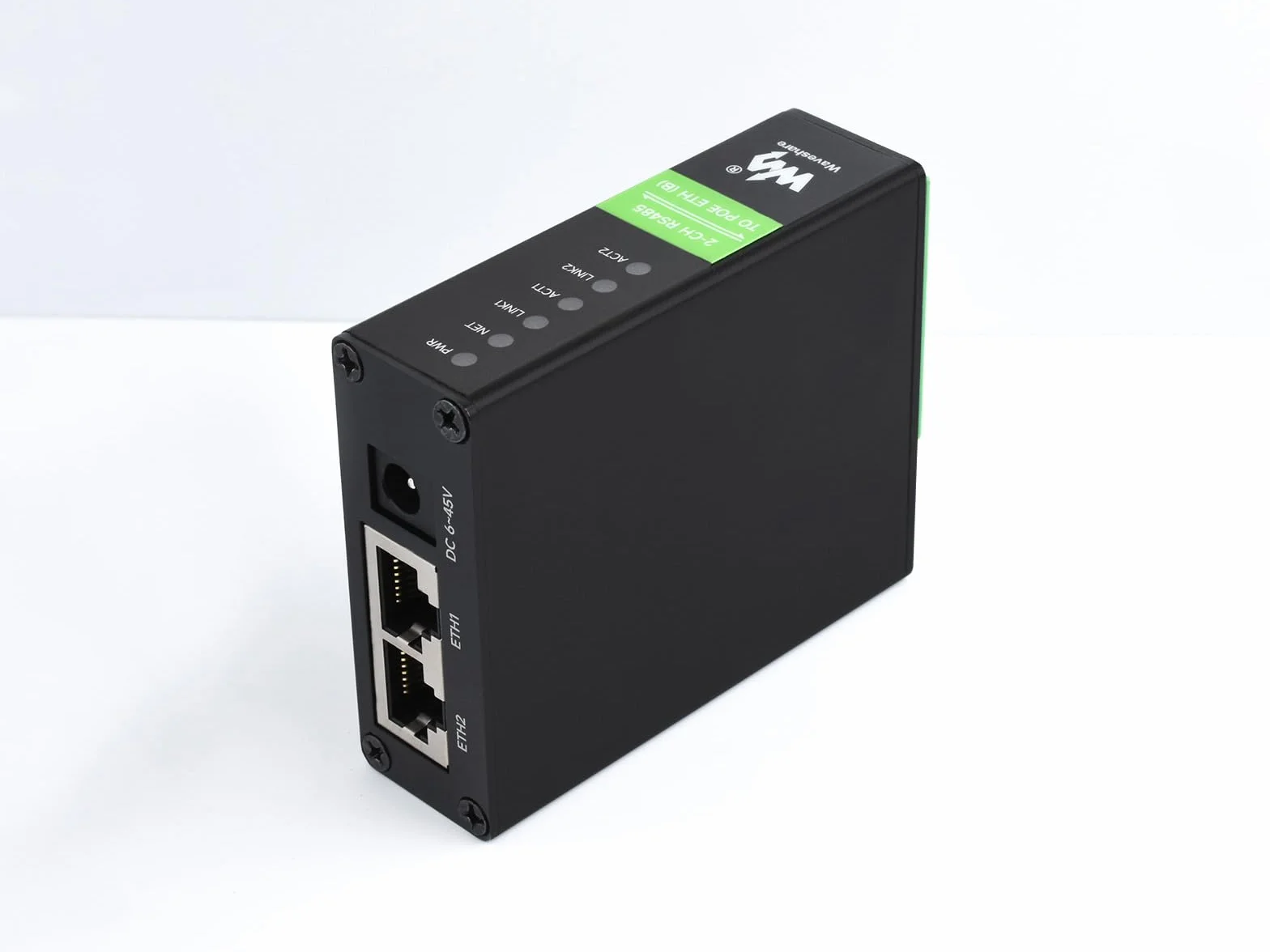

Waveshare 2-Ch RS485 to POE Ethernet Serial Server, Industrial Isolated Module, Rail-Mount

Marchio: Waveshare
Dispositivi compatibili: Dispositivi di calcolo (server, computer industriali, gateway IoT)
Processori compatibili: Intel Core i5
Piattaforma: Web Browser
Standard del bus di sistema supportato: PCIe
Totale porte HDMI: 1
Produttore: Waveshare

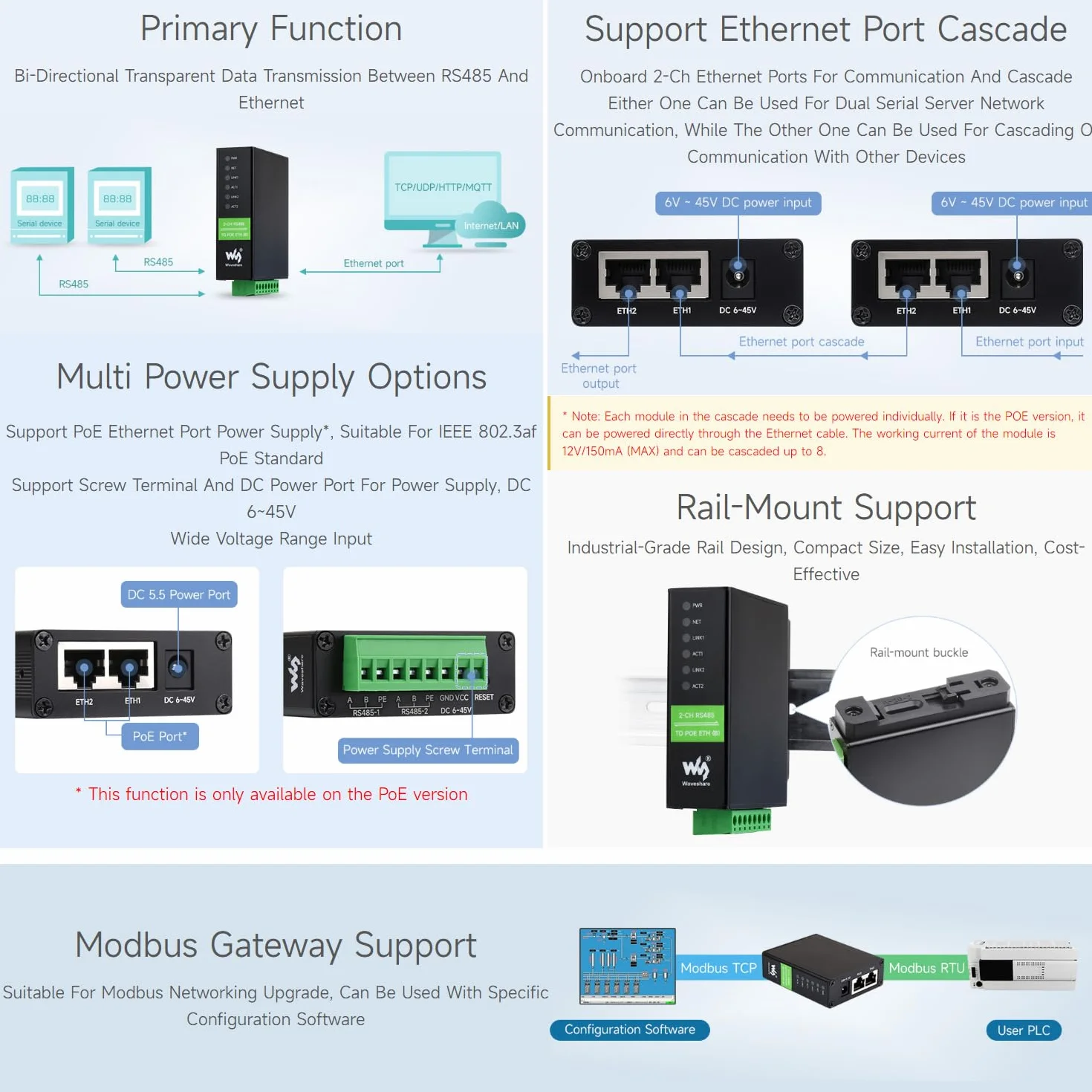

- [Primary function]bi-directional transparent data transmission between rs485 and ethernet. [Multi power supply options]support poe ethernet port power supply, suitable for ieee 802.3af poe standard. Support screw terminal and dc power port for power supply, dc 6~45v wide voltage range input
- [Support ethernet port cascade]onboard 2-ch ethernet ports for communication and cascade. Either one can be used for dual serial server network communication, while the other one can be used for cascading or communication with other devices. [Rail-mount support]industrial-grade rail design, compact size, easy installation, cost-effective

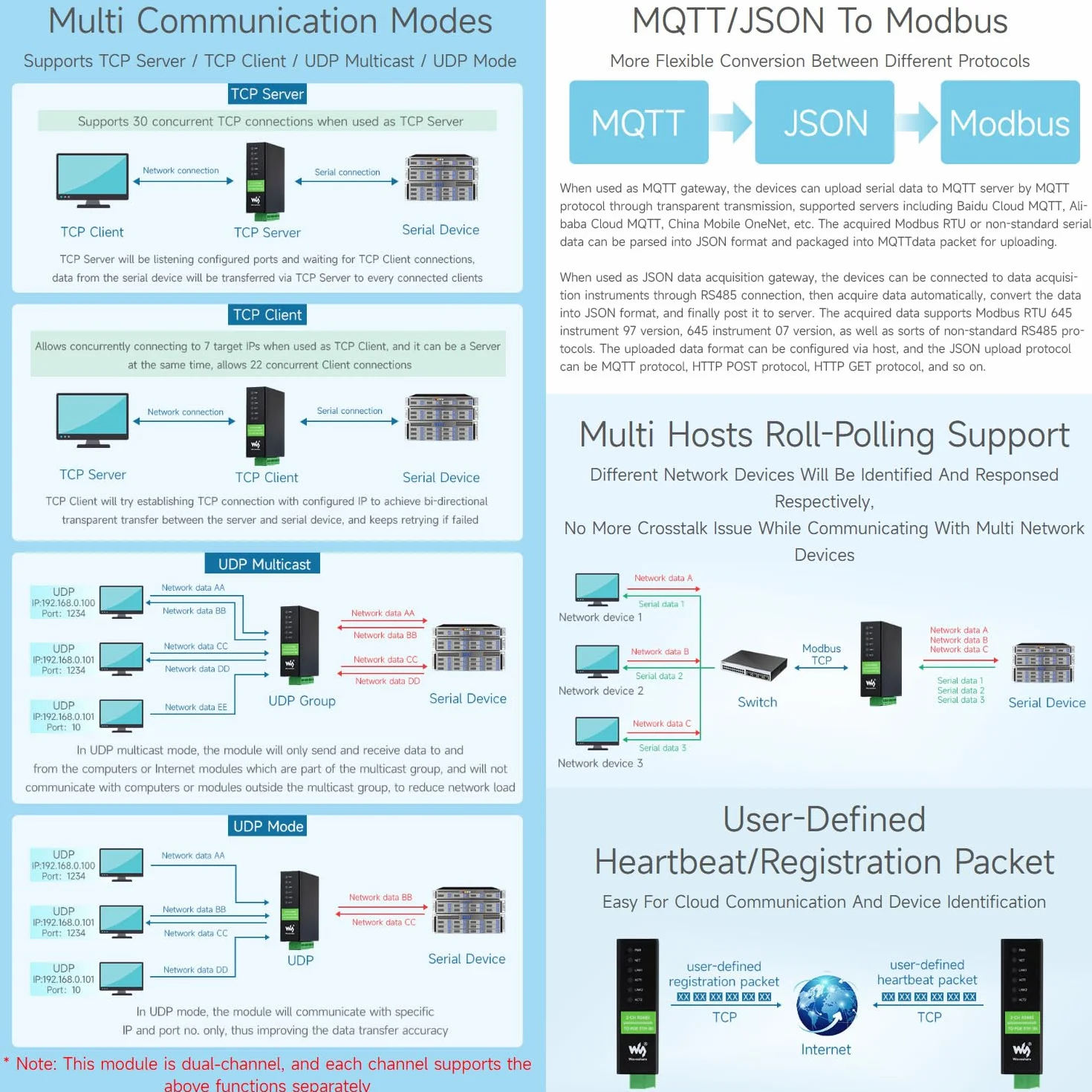

- [Modbus gateway support]suitable for modbus networking upgrade, can be used with specific configuration software. [Multi communication modes]supports tcp server/tcp client/udp multicast/udp mode. [MQTT/ISON to Modbus]more flexible conversion between different protocols
- [Multi hosts roll-polling support]different network devices will be identified and responsed respectively, no more crosstalk issue while communicating with multi network devices. [User-defined heartbeat/registration packet]easy for cloud communication and device identification

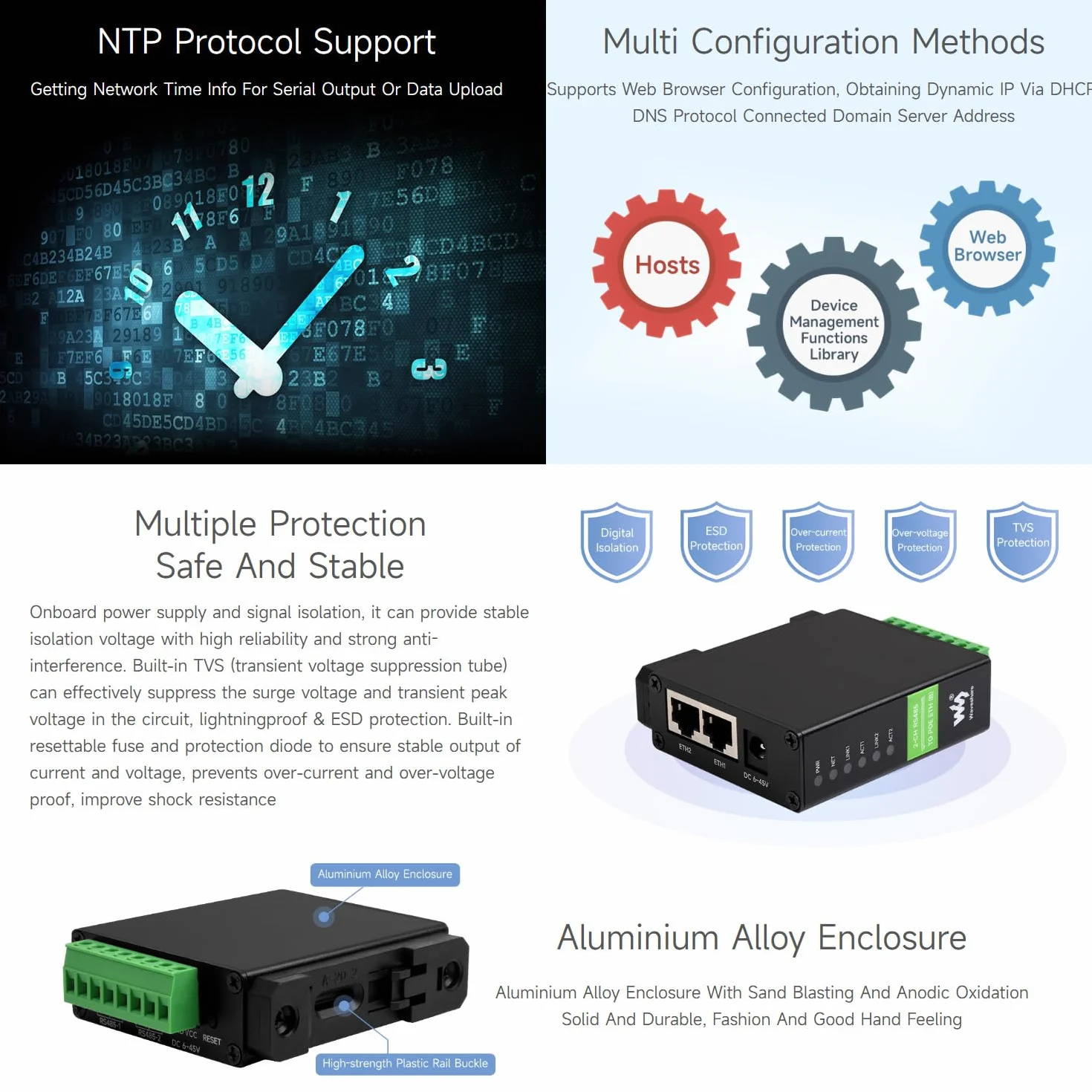

- [NTP protocol support]getting network time info for serial output or data upload. [Multi configuration methods]supports web browser configuration, obtaining dynamic ip via dhcp, dns protocol connected domain server address. [Multiple protection]safe and stable. [Aluminium alloy enclosure]aluminium alloy enclosure with sand blasting and anodic oxidation. Solid and durable, fashion and good hand feeling
